PULJAK REPAIR & REBUILDING INSTRUCTIONS

Remove rod & handle casting from workhead. Remove old cams & springs.
Compress new springs on each side with pliers and wrap with 10 turns of scotch tape to securely hold in compressed position.

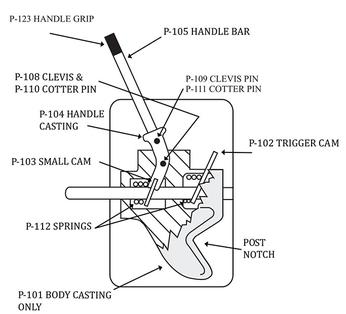

Place new cams and springs in cavity as illustrated to the right. Break scotch tape with screwdriver pushed through the rod hole. Make certain that springs are seated properly and centered in recess.
Insert PULJAK rod from each end to test for alignment of all internal parts. Both cams should move smoothly against spring.
Reassemble handle casting with notch over ear of small cam.
File off heavy ridges on rod and replace in PULJAK

C-S PULJAK

PULJAK REPAIR KIT WORKHEAD REBUILD TOOLS C 2 1/2 PULJAK

A4 PULJAK

B 2 1/2 PULJAK

(video available)

B4 PULJAK

PULJAK PRODUCTS

Click on the thumbnail images for more information on each PULJAK product.

LIFTING & PUSHING WITH A PULJAK

Depress trigger cam and slide workhead off rod.
Reverse workhead so "post notch" faces away from the puller
Reassemble to rod
DO NOT move handle while rod is removed!

STRETCHING, PULLING & ALIGNING USING A PULJAK

With tension bar in fence, (using 'Type A' PULJAK) hook the puller to your tension bar.
Place workhead around fence post.
Pump handle, drawing fence into desired clamping position.
When using 'Type B' PULJAK, simply hook stretcher studs into fence fabric and proceed as above.
NOTE: To release tension....depress trigger cam.

PULJAK Company manufactures the PULJAK 4-way fence tool. Fondly known as the 'Fenceman's Friend' the PULJAK allows individuals to lift, pull, align and stretch chain link fence and gates. Proudly made in the USA, you can rely on the PULJAK for your fence and gate installation needs. PULJAK® is a registered trademark of NANMARK Inc.

C-C PULJAK

A 2 1/2 PULJAK
(video available)

Workhead Rebuild Tools
$214

Authenticate your Puljak Fence Tool.
Beware of cheap imitations available on the market today. The ORIGINAL Puljak Fence Tool is Made in the USA; designed to provide you with years of service. Each Puljak is hand-assembled in our Pennsylvania production facility and bears the "Made in the USA" stamp on the workhead. Ask your retailer to verify the Puljak Fence Tool is an original Puljak.

Spring Compressor Pliers:
$60.00

Trigger Cam Spring Compressor: $84.00

Small Cam Spring Compressor:
$82.00

Care and Maintenance

C-S PULJAK

B4 PULJAK

The Puljak is made from a rugged heat treated malleable iron but, like most tools, is susceptible to surface rust. This by no means affects the quality and work ability of your Puljak. You can prevent this rust by applying a good quality gun oil or you can paint the Puljak with a rust preventive paint like Rust-Oleum.
NOTE: Never apply any oil to the cams and springs. This may cause slippage.

A4 PULJAK

Proudly made in the USA since 1958

C-S PULJAK

Sold Individually:
